CLINTON PARKWAY AND WAKARUSA RELIEF SEWER (PROJ.#PS04-33)



FINAL REPORT

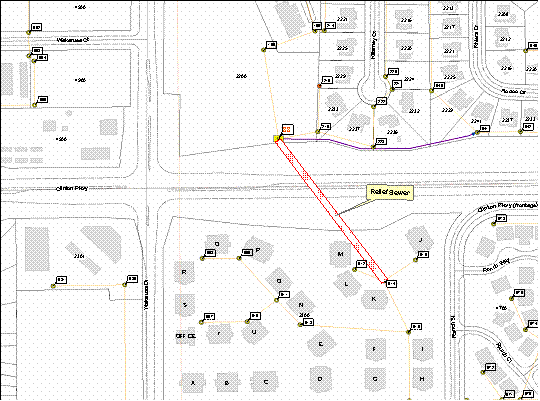

This report provides information regarding the recently completed Capital Improvement Project #PS04-33, also known as the Clinton Parkway & Wakarusa Drive Relief Sewer.  A map of the project area is shown below.







General Project Information

The goal of the project was to install a relief sewer that would enable the City to decommission Pump Station # 33, located at 4820 Clinton Parkway.  PS 33, installed in 1994 to serve development north of Clinton Parkway and east of Wakarusa, was located next to a drainage way at the bottom of a hill (see photo #1).  This location made accessibility for maintenance difficult.  Decommissioning of this station would result in substantial savings in maintenance costs and utility (phone, electric) costs.



   Photo #1

The relief sewer would convey flows by gravity from the pump station wet well to a sewer system on the south side of Clinton Parkway.

Table 1 presents information related to the schedule of the project.



Engineering Proposals Received

04/24/04

Bids Opened

10/26/04

Working Days Allotted

40

Working Days Used

38

Notice to Proceed Given

1/31/05

Final Completion Date

3/25/05

       Table 1







Professional Engineering Consultants, P.A. (PEC) was selected as the consultant for the project.  Nowak Construction Company was the low bidder on the project and was awarded the construction contract.







Graph 1 provides information on the engineering and construction costs of the project.

Graph 2 provides a breakdown of engineering costs.



                Graph 1                                                                                       Graph 2











Table 2 presents information regarding cost of the project



Engineer’s Estimate of Construction Cost

$108,865

Construction Costs

$79,185

Easement Costs

$26,720

Engineering Costs

$34,888

Change Orders

0

Change Order Amounts (+/-)

$00.00

Total Cost of Project

$140,793

2003 Master Plan Projected Cost

$260,000

       Table 2























Project Photographs











   Fusing the HDPE pipe segments together                                            HDPE pipe train in field (555’)



















HDPE pipe being pulled by existing lift stations                                       Drilling rig pulling pipe under Clinton Parkway
