TRAIL ROAD RELIEF SEWER (PROJ.# 1SS-204)



FINAL REPORT

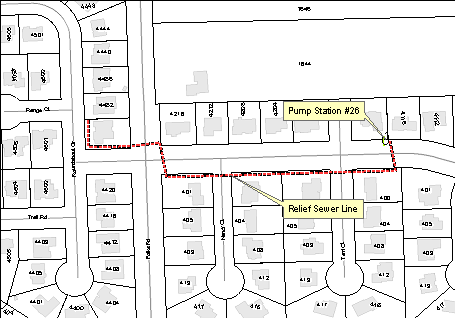

This report provides information regarding the recently completed Capital Improvement Project # 1SS-204, also known as the Trail Road Relief Sewer Project.  A map of the project area is shown below.





General Project Information

The goal of the project was to install a relief sewer that would enable the City to decommission Pump Station # 26, located at 4118 Trail Road.  PS 26, installed in 1989 to serve development north of 6th Street between Monterey Way and Folks Road, was located in the front yard of 4118 Trail Road. (see photo #1).  Unreliable electrical service to the station caused basement flooding on several occasions.  Decommissioning of this station would result in substantial savings in maintenance costs and utility (phone, electric) costs, remove a pump station from a front yard location and improve system reliability. The relief sewer would convey flows by gravity from the pump station wet well to a sewer system on the west side of Folks Road. Challenges associated with this project

Photo #1



included trench depths, a thick shelf of granite rock, a wintertime construction schedule and excavation in an established neighborhood.



Table 1 presents information related to the schedule of the project.



Engineering Proposals Received

12/19/03

Bids Opened

08/17/04

Working Days Allotted

40

Working Days Used

73

Notice to Proceed Given

11/03/04

Final Completion Date

04/08/05

       Table 1







Professional Engineering Consultants, P.A. (PEC) was selected as the consultant for the project.  Meadows Construction Company was the low bidder on the project and was awarded the construction contract.







Graph 1 provides information on the engineering and construction costs of the project.

Graph 2 provides a breakdown of engineering costs.



                Graph 1                                                                                       Graph 2







Table 2 presents information regarding cost of the project



Engineer’s Estimate of Construction Cost

$303,544

Construction Costs

$395,088

Easement Costs

$1

Engineering Costs

$48,050

Change Orders

2

Change Order Amounts (+/-)

-($7,750)*

Total Cost of Project

$443,139

2003 Master Plan Projected Cost

$260,000

       Table 2

*Contractor was assessed liquidated damages in an amount sufficient to cover additional construction phase service costs (on-site inspection)









Project Photographs











PS 26 prior to development of the area                                          Deep excavation in rock

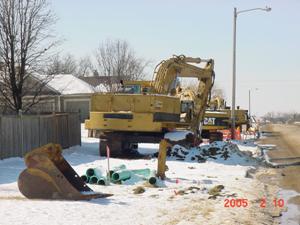

                Winter shutdown                                                                        New sod after construction













Jim Stuit                               June 2005
